Wave Atris 635 V2 Demo Scope

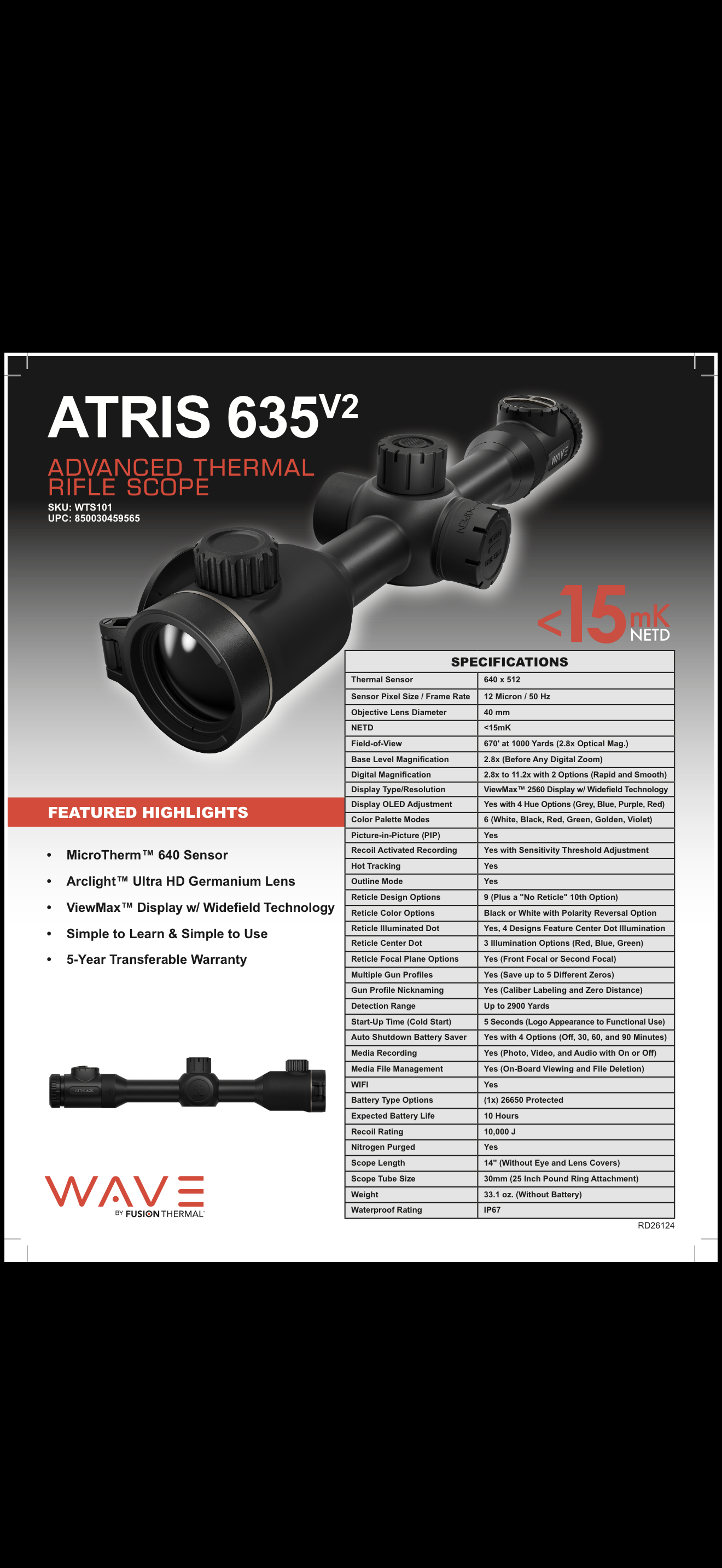

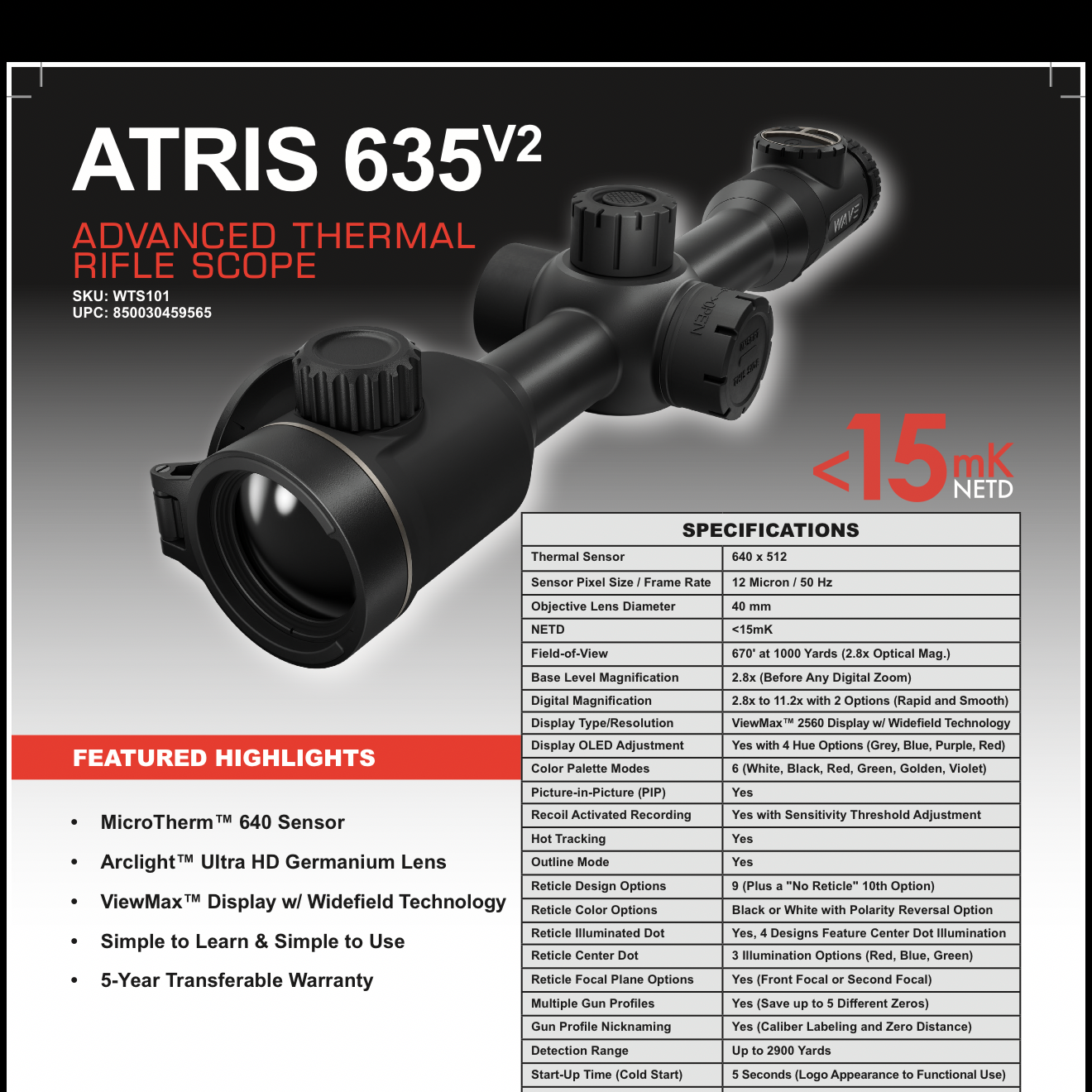

WAVE ATRIS 635 V2 Thermal Rifle Scope

The WAVE ATRIS 635 V2 combines high-resolution thermal imaging with a traditional 30mm rifle scope design built for serious nighttime hunters. Powered by WAVE’s MicroTherm™ 640×512 thermal sensor and an Arclight™ Ultra HD Germanium lens, the ATRIS 635 V2 delivers excellent target detection, detail, and image clarity in challenging conditions.

With a 40mm objective lens and 2.8× native magnification, the ATRIS 635 V2 provides a wide 670 ft field of view at 1,000 yards, making it particularly well suited for predator hunting where fast target acquisition and situational awareness matter.

Key Features

• 640×512 MicroTherm™ thermal sensor
• 12-micron / 50Hz sensor
• <15mK NETD thermal sensitivity
• 40mm Arclight™ Ultra HD Germanium objective
• 2.8× native optical magnification
• 2.8–11.2× digital magnification
• 670 ft @ 1,000 yd field of view
• Up to 2,900-yard detection range
• ViewMax™ 2560 OLED display with Widefield Technology
• Picture-in-Picture
• Recoil Activated Recording
• Photo, video and audio recording
• Hot Tracking and Outline Mode
• Wi-Fi connectivity
• 9 reticle designs + no-reticle mode
• Front or Second Focal Plane reticle options
• Save up to 5 rifle/zero profiles
• Approximately 5-second startup
• Up to 10 hours of battery life
• IP67 waterproof
• 10,000-joule recoil rating
• 30mm scope tube
• 5-Year Transferable Warranty

Specifications

Sensor: 640×512
Pixel Pitch: 12µm
Refresh Rate: 50Hz
NETD: <15mK
Objective: 40mm
Base Magnification: 2.8×
Digital Magnification: 2.8–11.2×
Field of View: 670 ft @ 1,000 yards
Detection Range: Up to 2,900 yards
Display: ViewMax™ 2560 OLED
Battery: 1× protected 26650
Battery Life: Up to 10 hours
Length: 14 in.
Weight: 33.1 oz. without battery
Tube Diameter: 30mm
Waterproof Rating: IP67
Warranty: 5-Year Transferable Warranty
